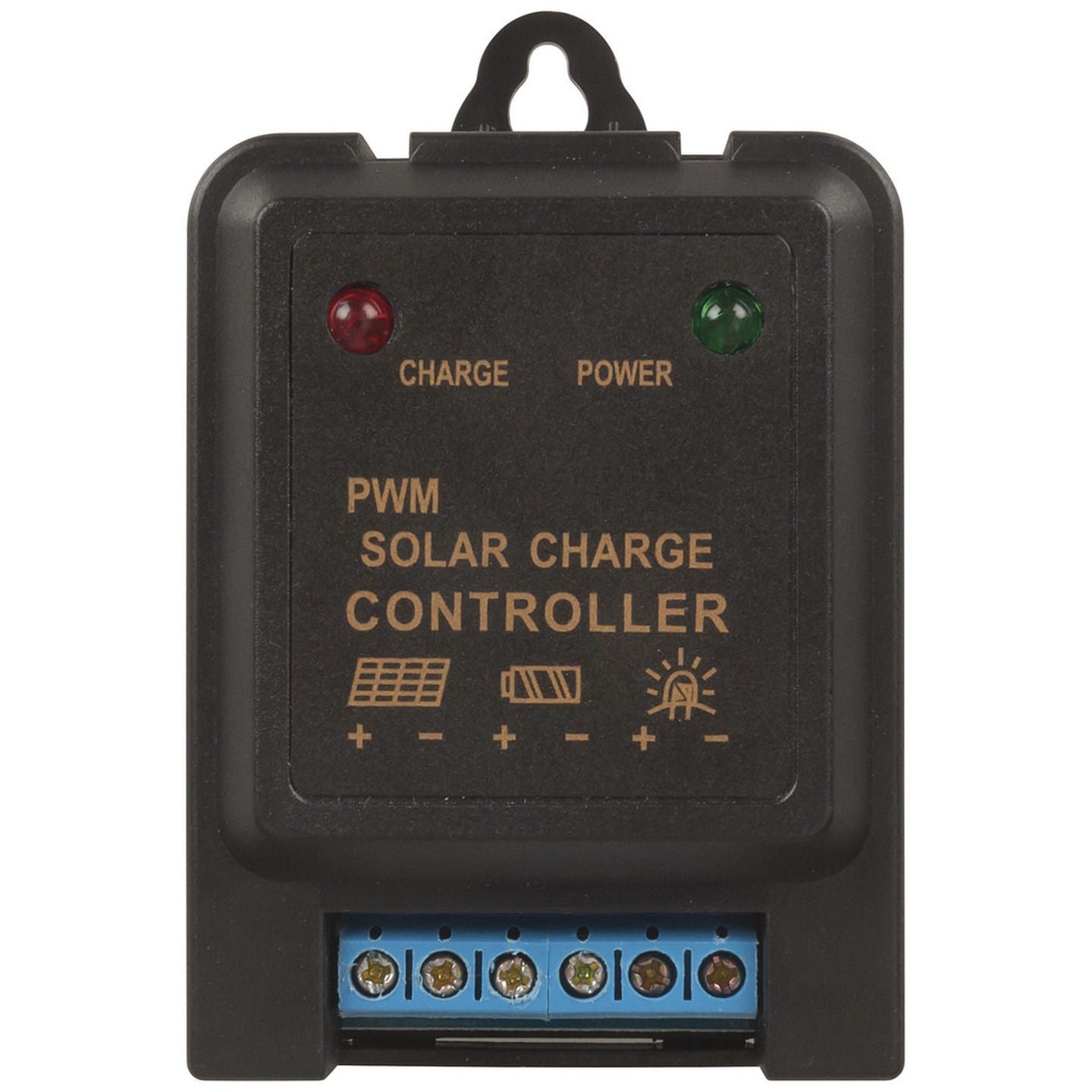

SOLAR CHG CTRL PWM 12V 3A MINI - MP3762

Miniature 12V 3A PWM Solar Charge Controller This compact solar controller uses Pulse Width Modulation (PWM) to manage battery charging from a connectedsolar panel. It features light and timer control, similar tostreet lights, and three charging states (bulk, equalise, and float charging). It provides all the important safety features such as overcharge, over-discharge, over-current, short-circuit, and reverse-polarity protection. Features: - Red charge LED indicator - Green power LED indicator - Hang hook - Battery voltage automatic identification - PWM charging mode - Comprehensive electronic protection Specifications: Rated Voltage: 12V Strong Charging Pressure: 14.8V Equilibrium Charging: 14.5V Float Charging Pressure: 13.7V Under Voltage: 10.8V Under Recover Voltage: 13V Non–Load Current: =6mA Charging Circuit Voltage drop: =0.2V Discharge Circuit Voltage drop: =0.1V Specifications DC Voltage : 12.0V IP Rating : 22 Dust/Particle Ingress Protection : 2 – Objects > 12.5mm, Fingers or small objects Liquid/Moisture Ingress Protection : 2 – Dripping water when tilted to 15deg Width : 52.0mm Height : 22.0mm Depth : 80.0mm Weight : 33.0kg Charge Controller Technology : Pulse Width Modulated (PWM) Max Charging Current : 3.0A Max Load Current : 3.0A.
